Product Photo Gallery

Detailed physical view of the 8 Amp autotransformer structure and components

Coimbatore Factory Production Inspection

Toroidal Autotransformer Terminal Block View

Terminal Block Interface Board

Close-up view of the front terminal panel showing wiring connections for Input (C-B) and Output (C-E), including wiring schematic indicators.

Toroid Winding Core Side Angle Perspective

Winding Core Side Angle Perspective

Side perspective highlighting the circular copper coil track turns, center shaft structure, carbon contact brush holder, and mounting points.

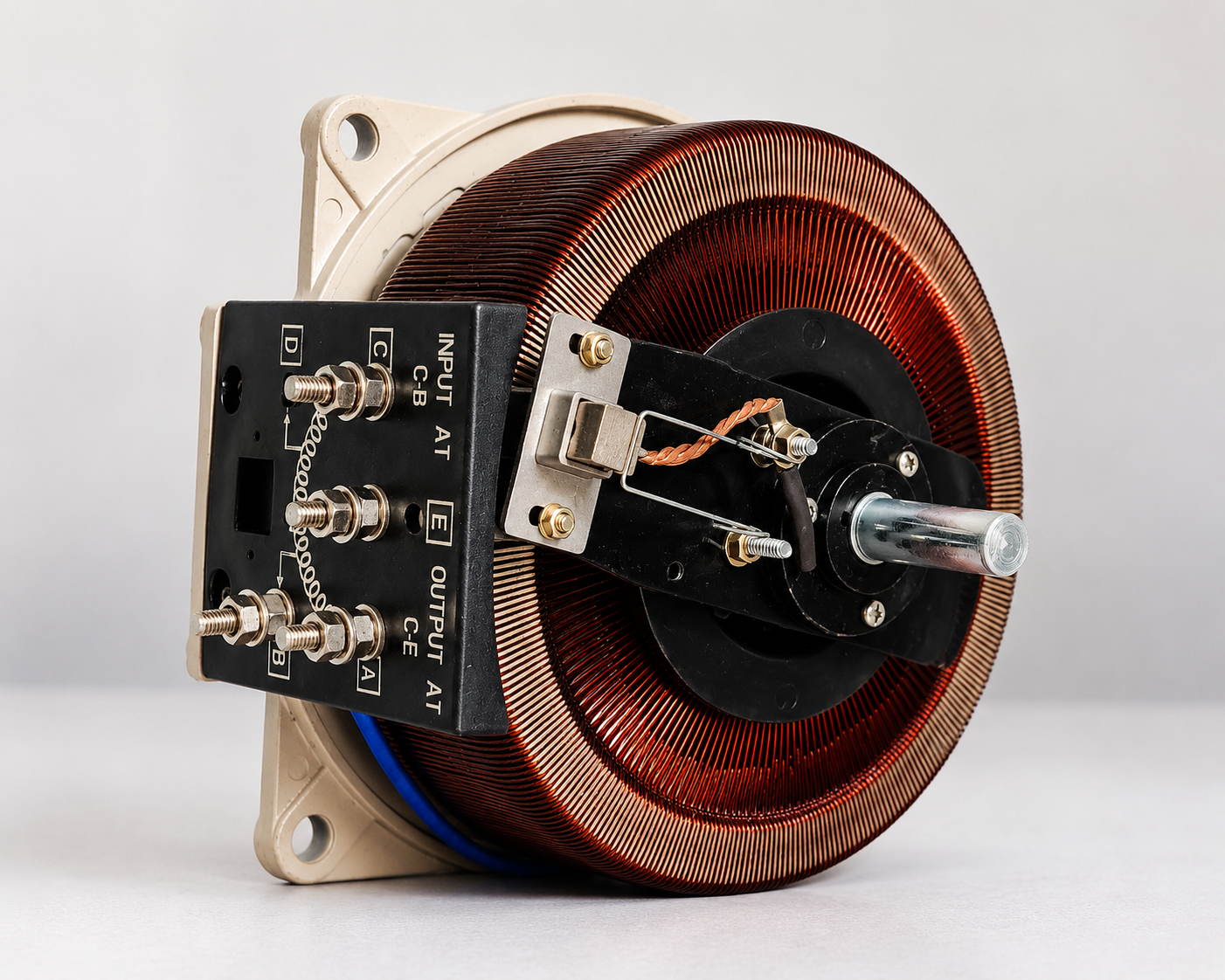

Autotransformer Winding Track Detail Angle

Alternate Winding Detail Angle View

High-contrast photo showing the precision-wound toroidal silicon core with clean, dense turns of copper wire for efficiency.

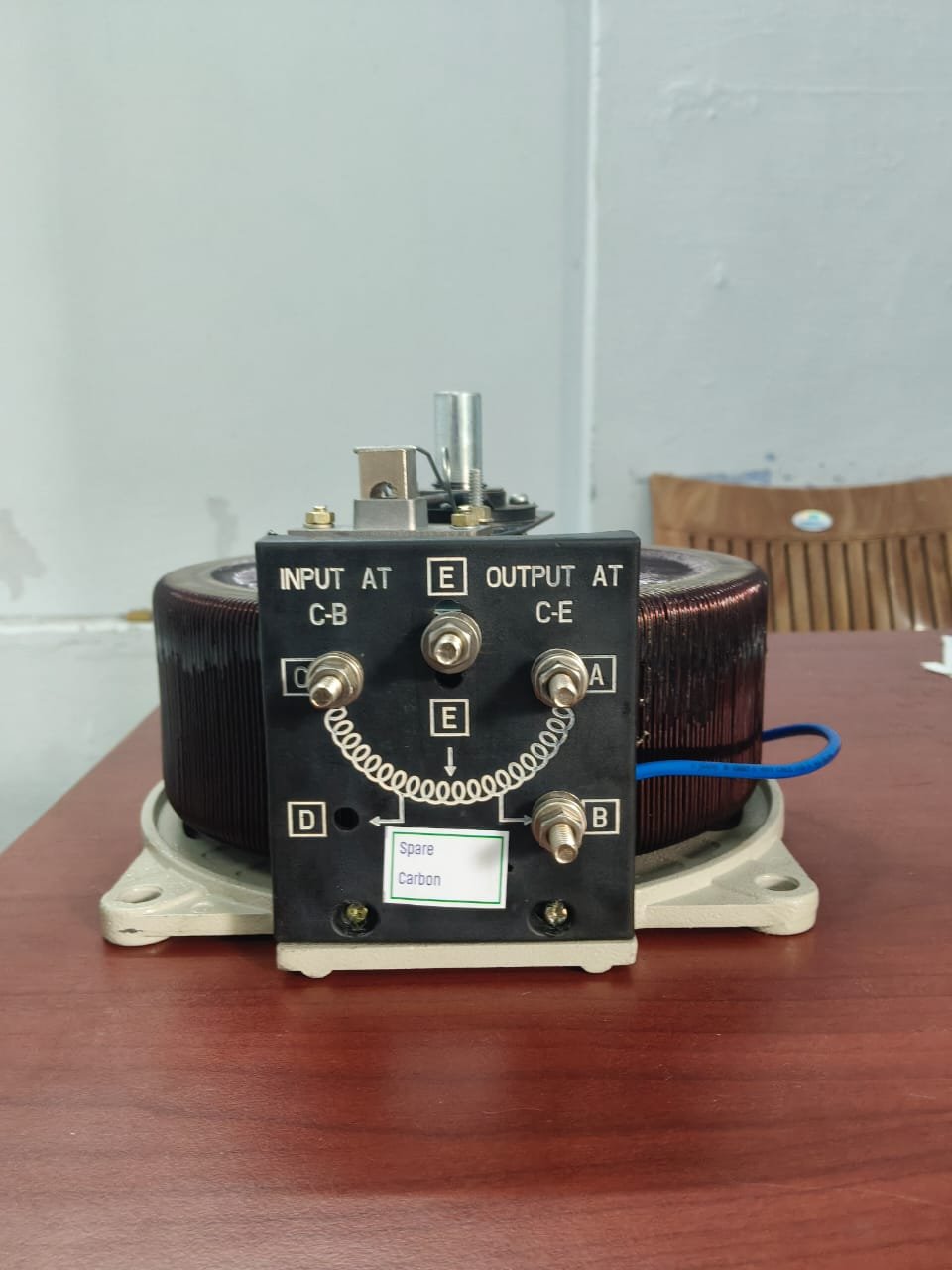

Front View with Spare Carbon Brush Tag

Terminal Block with Spare Carbon Brush

Front-facing view of the terminal panel, tagged with a spare carbon brush label included with every unit for maintenance.

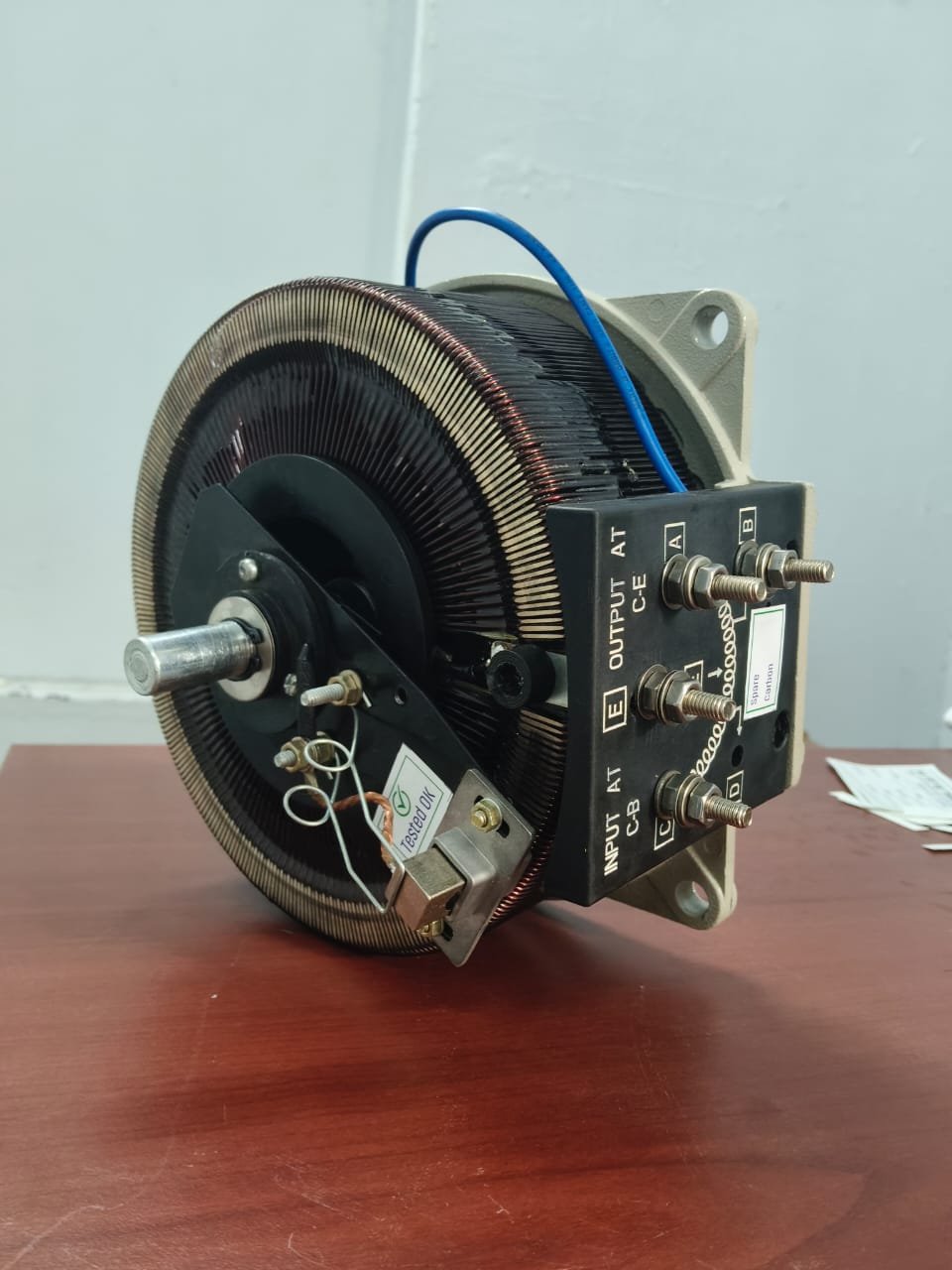

Side Angle View with Tested OK Tag

Quality-Verified Unit, Side Angle

Side perspective of a factory-inspected unit carrying our "Tested OK" quality verification tag before dispatch.

Top-Down View of Toroidal Winding

Top-Down Winding & Swing-Arm View

Direct overhead view of the toroidal coil face and the swing-arm carbon brush assembly at its center.

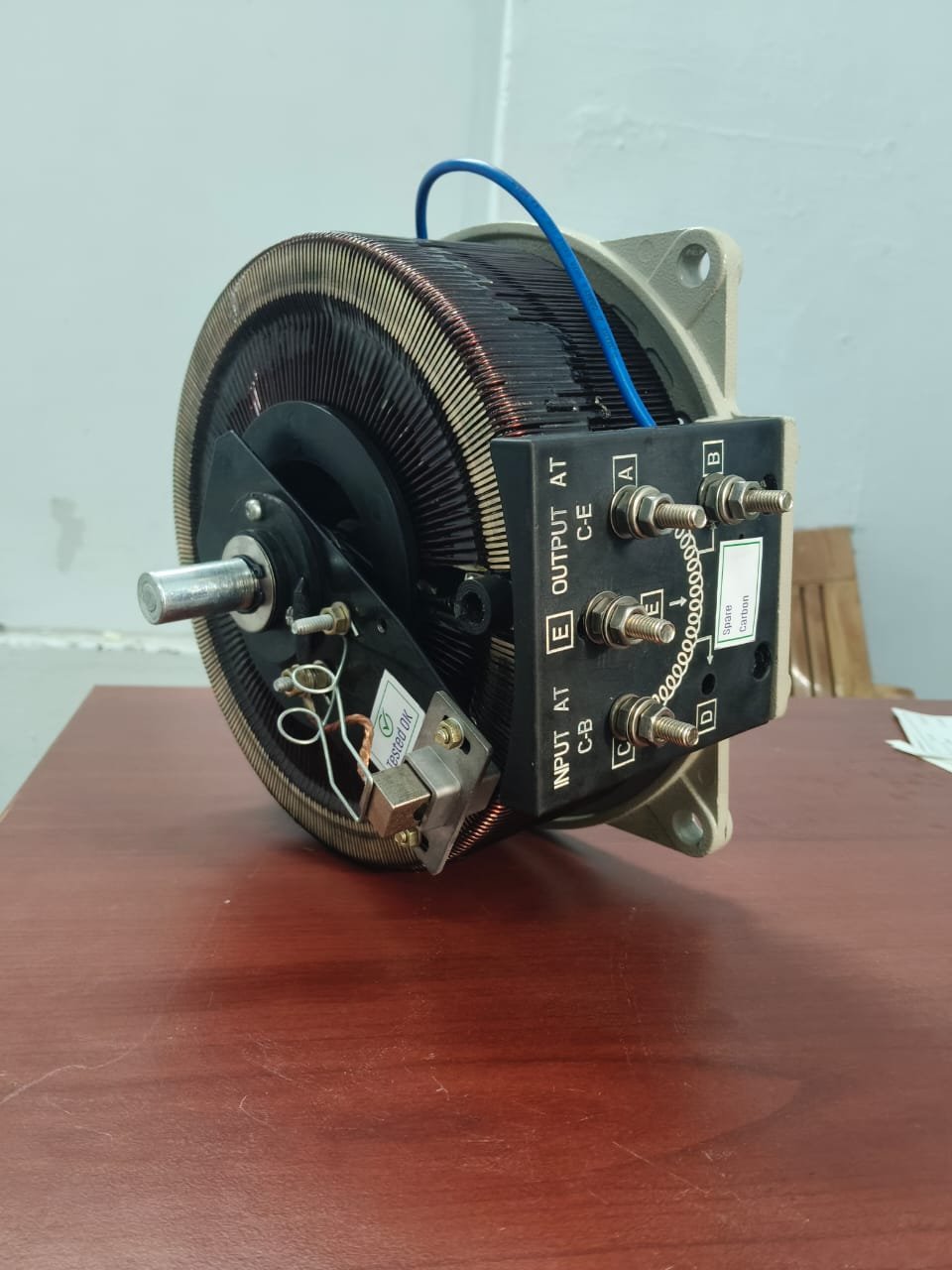

Rotated Perspective View of Terminal Board

Rotated Terminal Board Perspective

Rotated angle highlighting the terminal board layout alongside the full winding profile and mounting bracket.
